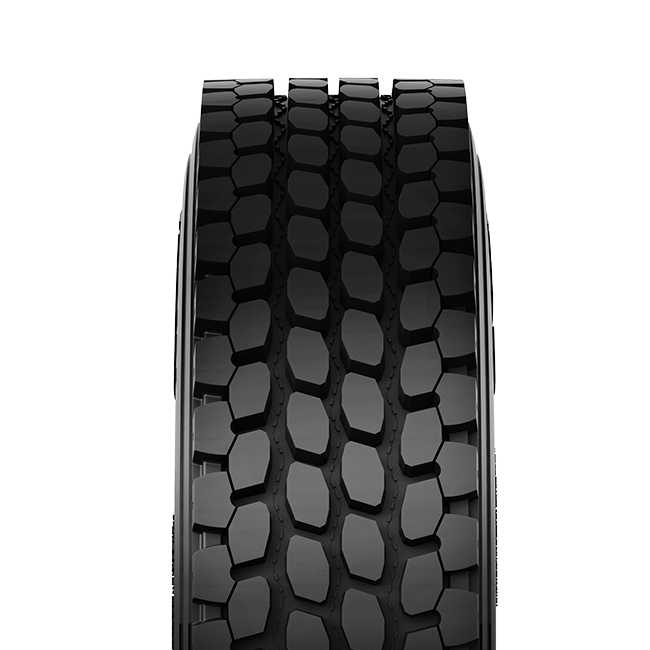

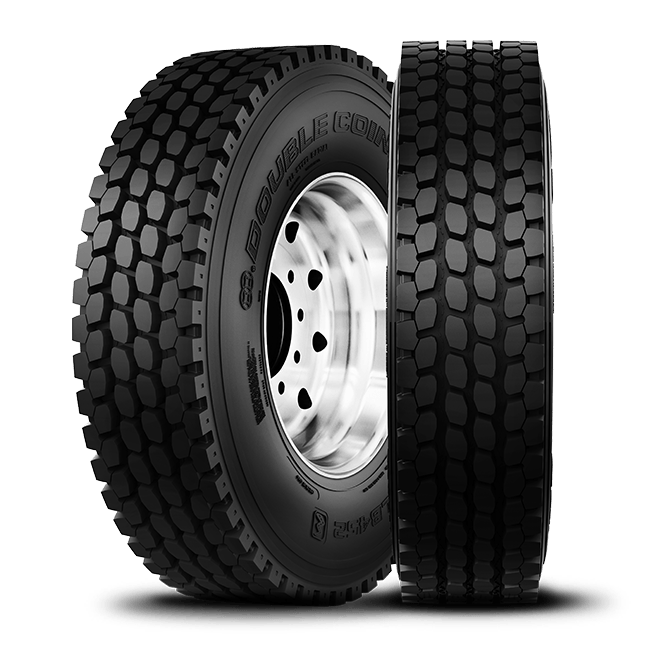

The RLB452 combines an open-shoulder directional tread pattern with offset shoulder blocks and a multi-extruded compound package in a 28/32" deep package. It's the drive tire for fleets that run in all weather, on all surfaces, and need the truck to keep moving regardless of what the road throws at them.
Directional tread patterns aren't just marketing — the V-shaped groove orientation actively pumps water out from under the tire at speed, reducing hydroplaning risk. The offset shoulder blocks with tie bars add lateral stability that open-shoulder tires sometimes sacrifice. What you get is a tire that grips in wet, snow, and loose-surface conditions but doesn't feel squirrely during highway lane changes. Goldtop customers who run mountain routes in South America — where a single haul might involve dry pavement, rain-soaked switchbacks, and gravel — have made this their standard drive tire.
Long-haul and regional fleets facing variable weather and road conditions; mountain-route operations where traction and stability both matter; year-round fleets in climates with distinct wet and dry seasons; mixed-service operations that occasionally leave pavement.
| Product Code | Size | Ply Rating | Load Range | Load Index | Speed Symbol | Overall Diameter (inch) | Section Width (inch) | Tread Depth (32nds) | RIM | Single Max Load/Pressure | Dual Max Load/Pressure | Static Load Radius | Revs per Mile | Weight | Tire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1133621255 | 11R22.5 | 14 | G | 144/142 | L | 41.9 | 11.1 | 28 | 8.25 | 6175lb/105psi | 5840lb/105psi | 19.6 | 496 | 129lb/58kg | TL |
| 1133621256 | 11R22.5 | 16 | H | 148/145 | L | 41.9 | 11.1 | 28 | 8.25 | 6940lb/123psi | 6390lb/123psi | 19.6 | 496 | 132lb/60kg | TL |
| 1133629255 | 295/75R22.5 | 14 | G | 144/141 | L | 41.1 | 11.9 | 28 | 9.00 | 6175lb/110psi | 5675lb/110psi | 19.3 | 505 | 131lb/59kg | TL |
| 1133629257 | 295/75R22.5 | 16 | H | 146/143 | J | 41.1 | 11.9 | 28 | 9.00 | 6610lb/120psi | 6005lb/120psi | 19.2 | 506 | 131lb/59kg | TL |
| 1133621455 | 11R24.5 | 14 | G | 146/143 | L | 43.6 | 10.9 | 28 | 8.25 | 6610lb/105psi | 6005lb/105psi | 20.1 | 476 | 138lb/62kg | TL |
| 1133621456 | 11R24.5 | 16 | H | 149/146 | L | 43.6 | 10.9 | 28 | 8.25 | 7160lb/120psi | 6610lb/120psi | 20.1 | 476 | 141lb/64kg | TL |
| 1133628455 | 285/75R24.5 | 14 | G | 144/141 | L | 41.2 | 10.9 | 28 | 8.25 | 6175lb/110psi | 5675lb/110psi | 19.6 | 493 | 131lb/59kg | TL |
| 1133628457 | 285/75R24.5 | 16 | H | 147/144 | K | 41.2 | 10.9 | 28 | 8.25 | 6780lb/120psi | 6175lb/120psi | 19.6 | 493 | 131lb/59kg | TL |
