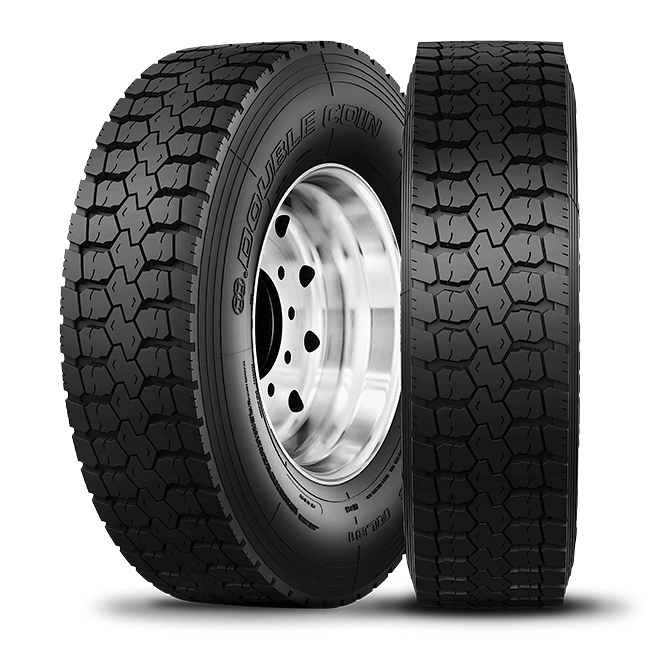

RLB1 — Open Shoulder Drive Tire for All-Weather Grip

When a fleet operates where the roads don't cooperate — monsoon rains in Thailand, muddy job sites in Nigeria, snowy mountain passes in Chile — the RLB1 is the drive tire that gets the load through. It uses an aggressive open-shoulder tread with full-depth siping, biting into loose surfaces while channeling water and slush out of the contact patch.
Reservation Now
+86-532-80991587
Detail

RLB1 — Premium DoubleCoin TBR tire for commercial fleet applications.

Authorized DoubleCoin distributor — genuine products, factory-direct pricing.

Overview

When a fleet operates where the roads don't cooperate — monsoon rains in Thailand, muddy job sites in Nigeria, snowy mountain passes in Chile — the RLB1 is the drive tire that gets the load through. It uses an aggressive open-shoulder tread with full-depth siping, biting into loose surfaces while channeling water and slush out of the contact patch.

Why This Tire Matters

Closed-shoulder highway tires are efficient, but they're the wrong tool when traction matters more than fuel economy. The RLB1's open shoulder design creates the mechanical grip for loose, wet, and snow-covered surfaces. More importantly, the siping runs the full depth of the 26/32" tread — meaning the traction doesn't disappear as the tire wears. Goldtop customers in Southeast Asia's rainy-season delivery fleets and South American mountain routes consistently choose this tire when conditions dictate capability over fuel savings.

Key Features

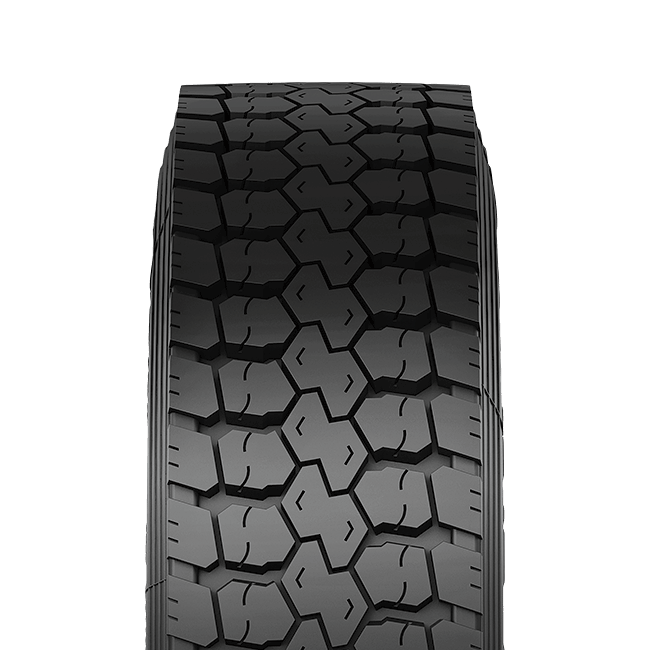

  • Aggressive Open Shoulder Tread — The open shoulder lugs bite into soft surfaces — mud, gravel, snow — while the wide voids self-clean at speed. You don't get stuck because the tread can't shed what it's picked up.
  • Full-Depth Siping (26/32") — Most tires lose siping depth as they wear — the fine cuts are only in the top portion of the tread. The RLB1's sipes extend the full 26/32", meaning the tire grips almost as well at 50% tread as it does at 100%.
  • Heavy-Duty Retreadable Casing — The casing is built with enough structural reserve to come back for retreading — a cost advantage that multiplies across a fleet running aggressive-drive tires that tend to wear faster than highway patterns.
  • Tubeless and Tube-Type Availability — Available in both configurations, covering markets where tube-type wheels are still standard (particularly in Africa and parts of Southeast Asia) as well as modern tubeless setups.

Best For

Fleets operating in regions with heavy seasonal rainfall (monsoon climates); construction and logging trucks running on unimproved roads; winter-condition fleets that don't want dedicated winter tires; mixed on/off-road applications where traction trumps fuel economy; operators in markets still running tube-type wheels.

Technical Specs

Product CodeSizePly RatingLoad RangeLoad IndexSpeed SymbolOverall Diameter (inch)Section Width (inch)Tread Depth (32nds)RIMSingle Max Load/PressureDual Max Load/PressureStatic Load RadiusRevs per MileWeightTire Type
113341125511R22.514G144/142M41.710.9268.256175lb/105psi5840lb/105psi19.8493126lb/57kgTL
113341125611R22.516H148/145M41.710.9268.256940lb/123psi6390lb/123psi19.8493130lb/59kgTL
1133419255295/75R22.514G144/141L40.911.7269.006175lb/110psi5675lb/110psi19.4498131lb/59kgTL
113341145511R24.514G146/143L43.710.9268.256610lb/105psi6005lb/105psi21.0471138lb/62kgTL
113341145611R24.516H149/146L43.710.9268.257160lb/120psi6610lb/120psi21.0471142lb/64kgTL
1133418455285/75R24.514G144/141L41.911.0268.256175lb/110psi5675lb/110psi19.8485135lb/61kgTL
1133412796225/70R19.514G128/126N32.58.8196.753970lb/110psi3750lb/110psi15.164471lb/32kgTL
1133414796245/70R19.516H136/134J33.59.6197.504940lb/120psi4675lb/120psi15.261785lb/39kgTL
11334192069.00R2016H144/142L40.610.1267.006175lb/130psi5840lb/130psi19.1505114lb/51kgTT
113341102610.00R2016H146/143L41.510.7227.506610lb/120psi6005lb/120psi19.4497135lb/61kgTT
113341022510R22.514G141/139K40.210.0227.505675lb/115psi5355lb/115psi18.3512112lb/50kgTL
1133415726255/70R22.516H140/137K36.79.9227.505510lb/120psi5070lb/120psi17.456098lb/44kgTL
1133419258295/80R22.518J152/149M41.511.7269.007830lb/130psi7160lb/130psi19.8493139lb/63kgTL
Have a question ? We are here to help.
Check out the most common questions our customers asked. Still have questions ? Contact our customer support.
Our customer support is available monday to friday: 8am-8:30pm. Average answer time: 24h
Q1: What's your minimum order quantity for tire export?
Our standard MOQ is one 20ft container (approximately 200-300 tires depending on tire size and type). For initial trial orders from new partners, we can accommodate mixed containers with multiple tire models and sizes. This allows you to test different products in your market without overcommitting. Contact our sales team to discuss a container configuration that matches your market needs.
Q2: Which countries do you ship to?
We export to 45+ countries across Africa, the Middle East, Southeast Asia, and Latin America. Our main shipping routes depart from Qingdao Port to major destinations including Lagos (Nigeria), Mombasa (Kenya), Durban (South Africa), Jebel Ali (UAE), Ho Chi Minh City (Vietnam), and Santos (Brazil). For countries with SONCAP, GCC, or INMETRO requirements, we pre-handle certification documentation to ensure smooth customs clearance at your port.
Q3: What certifications do your tires have?
Our tires hold seven international certifications: DOT (U.S. Department of Transportation), ECE (UN Economic Commission for Europe), GCC (Gulf Cooperation Council), INMETRO (Brazil), CCC (China Compulsory Certification), SONCAP (Nigeria), and ISO9001 Quality Management. Each certification targets a specific market requirement — for example, SONCAP is mandatory for Nigeria imports, while INMETRO is required for Brazil. We'll provide the relevant certification documents with your shipment.
Q4: How long does shipping take?
Typical ocean freight transit times from Qingdao Port: West Africa (35-45 days), East Africa (25-35 days), Middle East (20-25 days), Southeast Asia (10-15 days), Latin America (30-40 days). Production lead time is 15-25 days after order confirmation for standard models. For urgent orders, we offer priority production scheduling (subject to factory capacity). We recommend placing orders 60-75 days before you need the tires in your warehouse.
Q5: Can you provide samples or technical data sheets?
Yes. We provide free technical data sheets (PDF) for all tire models, including dimensional drawings, load/speed ratings, tread depth, and application recommendations. Physical samples can be arranged — we'll ship 1-2 sample tires per model via air freight (typically 5-7 days) or include them in your next container at no extra freight cost. Sample cost is refunded against your first full container order.
Q6: Do you offer OEM or private labeling?
We offer two paths for brand customization. Option A — OEM Manufacturing: We produce tires under your brand name and sidewall design (MOQ: 2 containers per pattern). Option B — Private Label Program: For our in-stock Fedcoin patterns, we can add your company's sidewall marking alongside the standard Fedcoin branding (MOQ: 1 container). Both options include custom packaging design support. Lead time for OEM is 30-45 days; private label is 15-20 days.
