DoubleCoin REM-9 E4 Haulage Tire

E4 deep-tread haulage tire for rigid trucks and large ADTs in severe mining. Non-directional center rib tread delivers enhanced traction and stable haul-road tracking under sustained high loads. Three compound options match the dominant wear mechanism at each operation. Deep tread provides extended life across varied conditions. 26.5R25 to 24.00R35.

Reservation Now

+86-532-80991587

Next: DoubleCoin REM-8 MCS Crane Tire

Detail

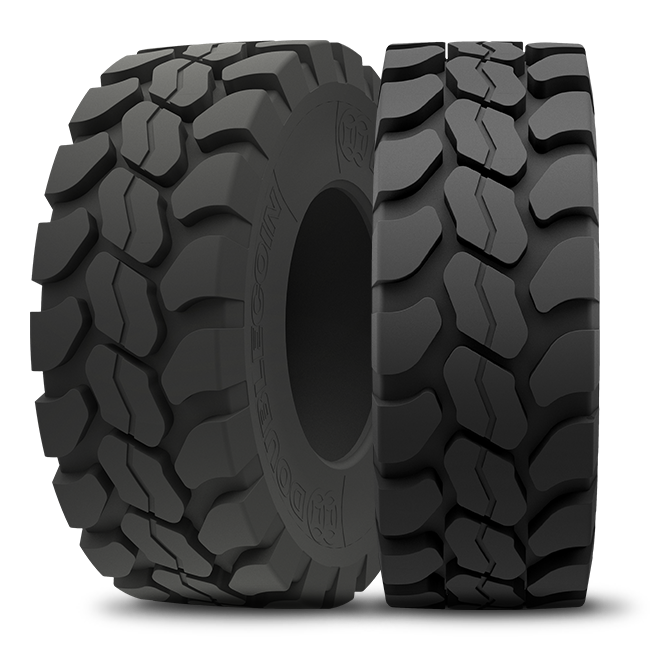

REM-9 — (E4) Deep-Tread Haulage Tire for Severe Mining

Authorized DoubleCoin distributor — genuine products, factory-direct pricing.

Overview

The Double Coin REM-9 OTR radial design offers special compounds to withstand severe mining applications, extend tire life, and promote long-term retreadability. Its non-directional center rib tread pattern delivers enhanced off-the-road traction while providing the stable straight-line tracking that rigid-frame haul trucks demand on fixed haul routes between excavation faces and crushers or waste dumps. The deep E4 tread depth provides extended tread life in a wide variety of conditions.

What sets the REM-9 apart is its three-compound availability: A (cut/chip), S (standard), and B (heat-resistant). An iron-ore mine with abrasive hematite selects the cut/chip compound; a coal mine with long, high-speed hauls chooses the heat-resistant formulation. This level of compound selectivity is unusual in the OTR market and directly addresses the fact that different mining operations have fundamentally different dominant wear mechanisms.

Why This Tire Matters

Haul truck tires are among the highest-cost consumables in mining. A single 24.00R35 tire represents significant capital investment, and the difference between a tire delivering 4,000 hours and 5,500 hours is measured in six-figure fleet-wide savings. The REM-9's compound selection capability means the tire can be tuned to the specific failure mode at each operation.

Goldtop works with mining customers to analyze their wear patterns and select the correct compound for their haul profile — a tailored approach rather than a one-compound-fits-all compromise. This is where supply expertise meets the operational reality: getting the compound right can extend tire life by 20-30% versus a mismatched specification.

Key Features

Three-Compound Availability (A/S/B) — select cut/chip, standard, or heat-resistant compound based on the dominant wear mechanism at each mine — the right compound extends tire life by 20-30%

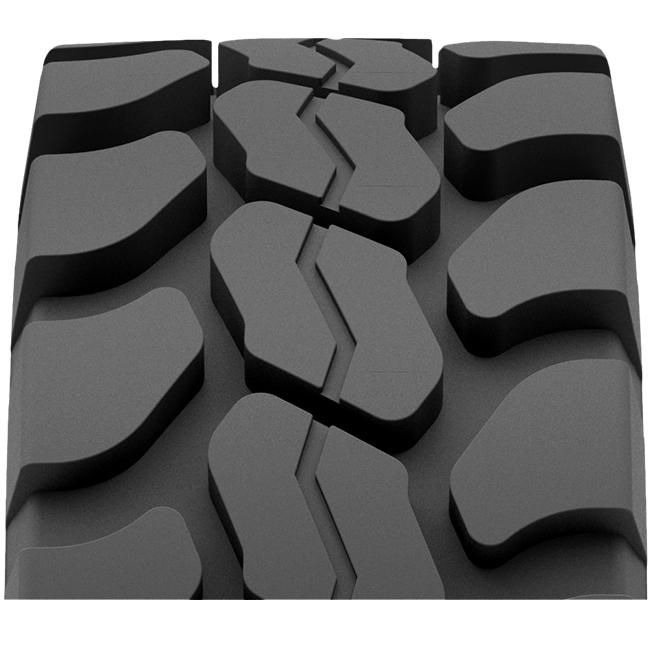

Non-Directional Center Rib Tread — continuous center rib pattern delivers enhanced off-the-road traction and stable haul-road tracking under sustained high loads
Deep E4 Tread Depth — extended rubber mass for long-haul abrasion resistance — more tread depth means more haul cycles before removal
Retreadable Casing Design — reinforced belt packages and stone-ejection features protect the casing for multiple retread lives — the casing is the long-term asset

Specifications

Product Code	Size	Pattern	Load Symbol	Speed Max (mph)	Overall Diameter (inch)	Section Width (inch)	Tread Depth (32nds)	RIM	Single Max Load/Pressure	Weight	Tire Type
1087206255	26.5R25	REM-9 (A)	★★	30/5	70	27	59	22.00/3.0	25300lb/76psi / 40700lb/94psi	1191lb/540kg	TL
1087202958	29.5R25	REM-9 (A)	★★	30/5	75	30	76	25.00/3.5	30800lb/76psi / 49280lb/94psi	1434lb/650kg	TL
1087201833	18.00R33	REM-9 (A)	★★	30	73	20	69	13.00/2.5	23980lb/102psi	1037lb/470kg	TL
1087201834	18.00R33	REM-9 (S)	★★	30	73	20	69	13.00/2.5	23980lb/102psi	1037lb/470kg	TL
1087201835	18.00R33	REM-9 (B)	★★	30	73	20	69	13.00/2.5	23980lb/102psi	1037lb/470kg	TL
1087202452	24.00R35	REM-9 (A)	★★	30	85	26	87	17.00/3.5	40700lb/102psi	1713lb/777kg	TL
1087202453	24.00R35	REM-9 (S)	★★	30	85	26	87	17.00/3.5	40700lb/102psi	1713lb/777kg	TL
1087202454	24.00R35	REM-9 (B)	★★	30	85	26	87	17.00/3.5	40700lb/102psi	1713lb/777kg	TL
1087202135	21.00R33	REM-9 (B)	★★	30	77	22	69	15.00/3.0	30864lb/102psi	1251lb/567kg	TL
