Overview

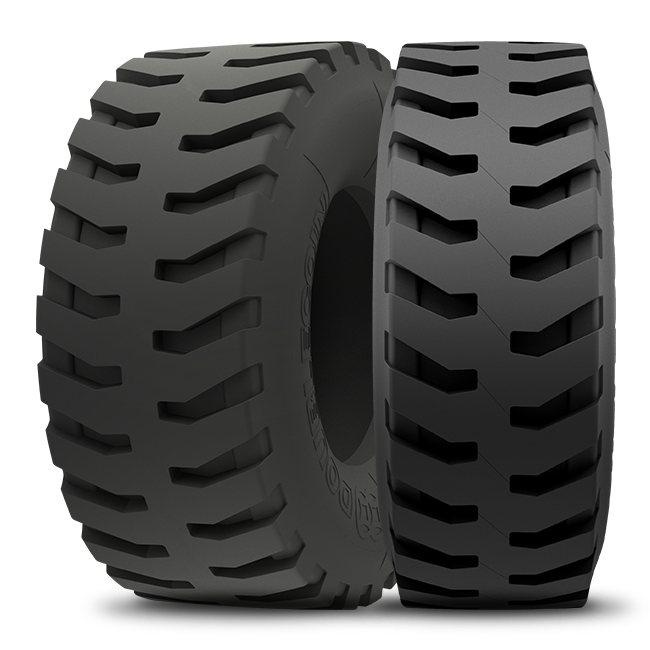

The Double Coin REM-18 radial OTR is built for severe loader applications in hard-rock mining and heavy construction. Constructed with special chip-and-cut resistant compounds to promote extended original tread life and long-term retreadability, the REM-18 carries an L5 classification — the maximum tread depth rating — combined with a directional tread design engineered for increased forward traction under breakout loads.

The wide footprint and center riding rib serve complementary functions. The width distributes the loader's weight — often exceeding 50 tons on large machines — across enough rubber to prevent excessive ground pressure and sinkage at the face. The center rib provides a stable platform under the machine's center of mass, improving operator comfort and reducing the lateral sway that accelerates shoulder wear during load-and-carry cycles.

Why This Tire Matters

Large wheel loaders are production-critical assets. When the loader stops, the haul trucks stop, the crusher stops, and revenue stops. The REM-18's L5 tread depth and cut-resistant compound directly address the two primary modes of loader tire failure: wear-out (tread consumed to removal) and damage-out (casing destroyed by rock cuts before the tread is gone).

Goldtop has seen REM-18 tires go through multiple retread cycles in severe mining applications where lesser casings were scrapped after the first tread life — the compound protects not just the tread but the casing investment underneath.

Key Features

• Wide Footprint for Stability — distributes loader weight to prevent excessive ground pressure — center riding rib improves comfort and reduces lateral sway
• Cut & Chip Resistant Compounds — specialized formulation extends original tread life and protects the casing for multiple retread cycles in severe applications

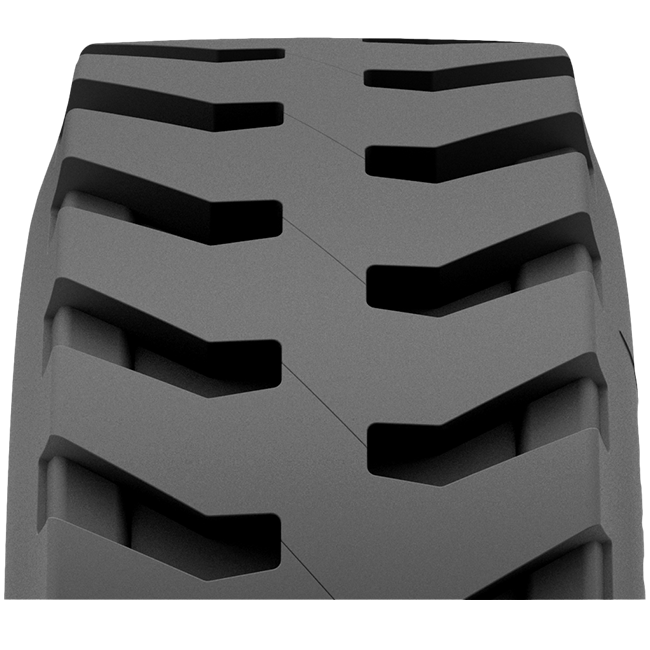

• Directional Tread Design — engineered for maximum forward traction during loader breakout — puts more rubber in contact in the direction of load
• L5 Maximum Tread Depth — deepest tread classification delivers longest possible original tire life — more hours between changes on production-critical machines
